Web45 Panel

Web45 Panel

Wide Edge Board panel have a distinctive look with bold shadow effects that highlight the unique look of the panel ribs.

Wide Edge Board panel have a distinctive look with bold shadow effects that highlight the unique look of the panel ribs.

Wall Panels
Residential
Commercial

Web45 Panel

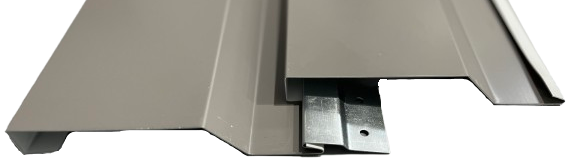

Wide Edge Board panels are perfect as an accent wall because the different textures create depth and break up the look of a large exterior wall. Wave panels can be installed horizontally or vertically over any solid substrate or open framing. There are no visible fasteners so it has a sleek and ultramodern appearance that will complement your buildings features and architecture.

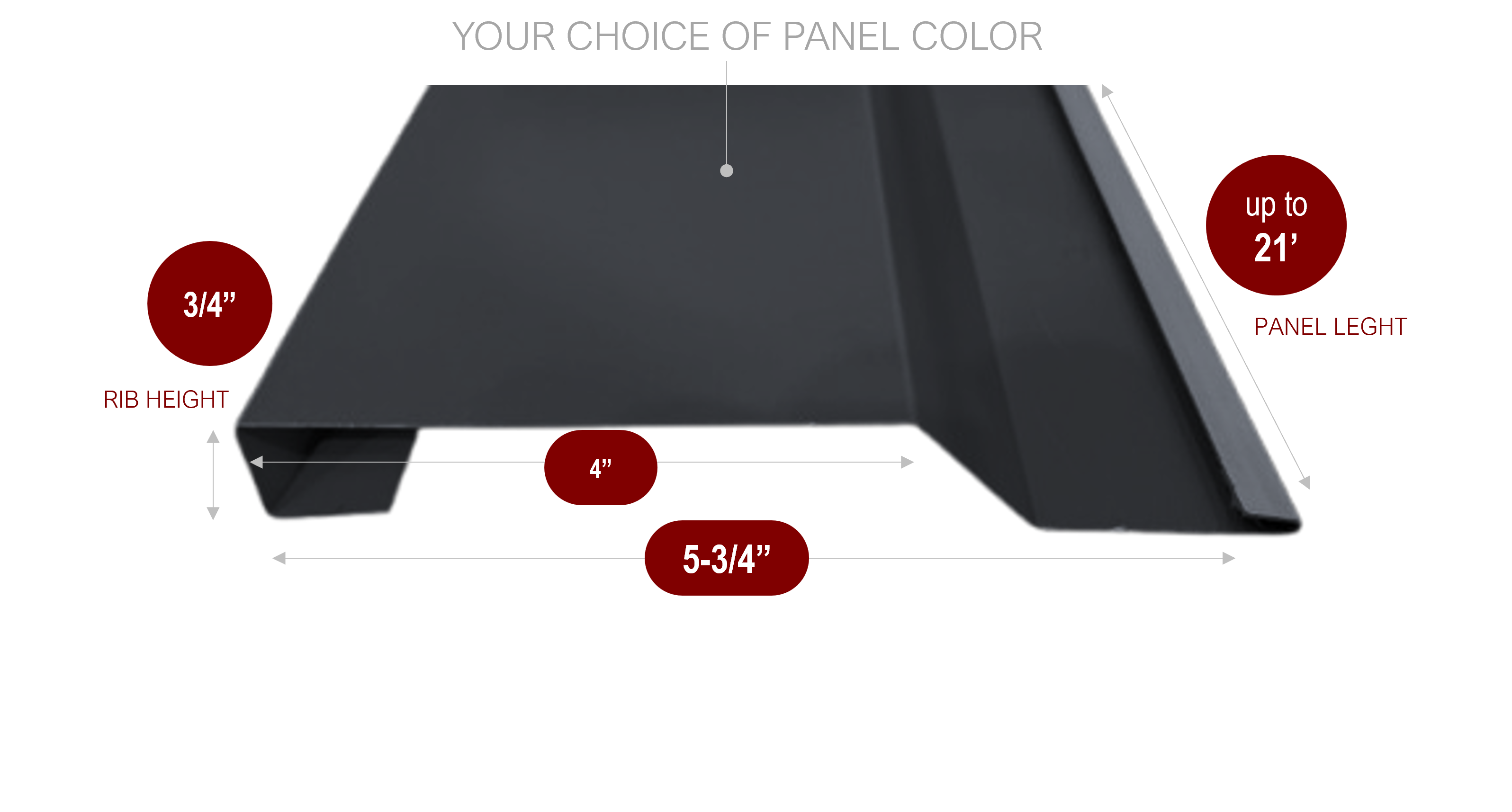

Dimensions & Profile

Product Data

  • Rib Distance 4"

  • Rib Height: 3/4″

  • Available Gauges: 24, 26

  • Fasteners: Concealed
  • Panel Length: 1′ to 21′

  • Coverage: 5.75"

  • Coating: Kynar 500® (PVDF)

Standard Color Chart

WOODEN SPOT W77

KNOTTY PINE W69

CONCRETE X23

ACASIA WOOD W23

SLATE GRAY L2880

POLAR WHITE H2070

LIGHT STONE E7090

HAWAIIAN BLUE B2090

DARK BRONZE K2360

FERN GREEN D2970

CHARCOAL GRAY L2870

PREWEATHERED GALVALUME L2890

GALVALUME STEEL A755

MATTE BLACK B2370

DARK BLUE  D2060

COLONIAL RED R2060

Find a Distributor/Contractor Near You

Whether you’re building a new home or planning renovations, a metal roof can deliver long-term cost savings and comfort. To explore your options and find the product that meets your aesthetic and budgetary needs, contact an Atlantic Metal distributor or contractor in your area today. We can’t wait to help make your dream home a reality.
