One Rib Panel
One Rib Metal Exteriors is where technology, modern trends, and tradition intersect. It's designed for durability without hassle. Our team selects high quality materials and ensures easy installation, so every project is complete with long-lasting style and performance.

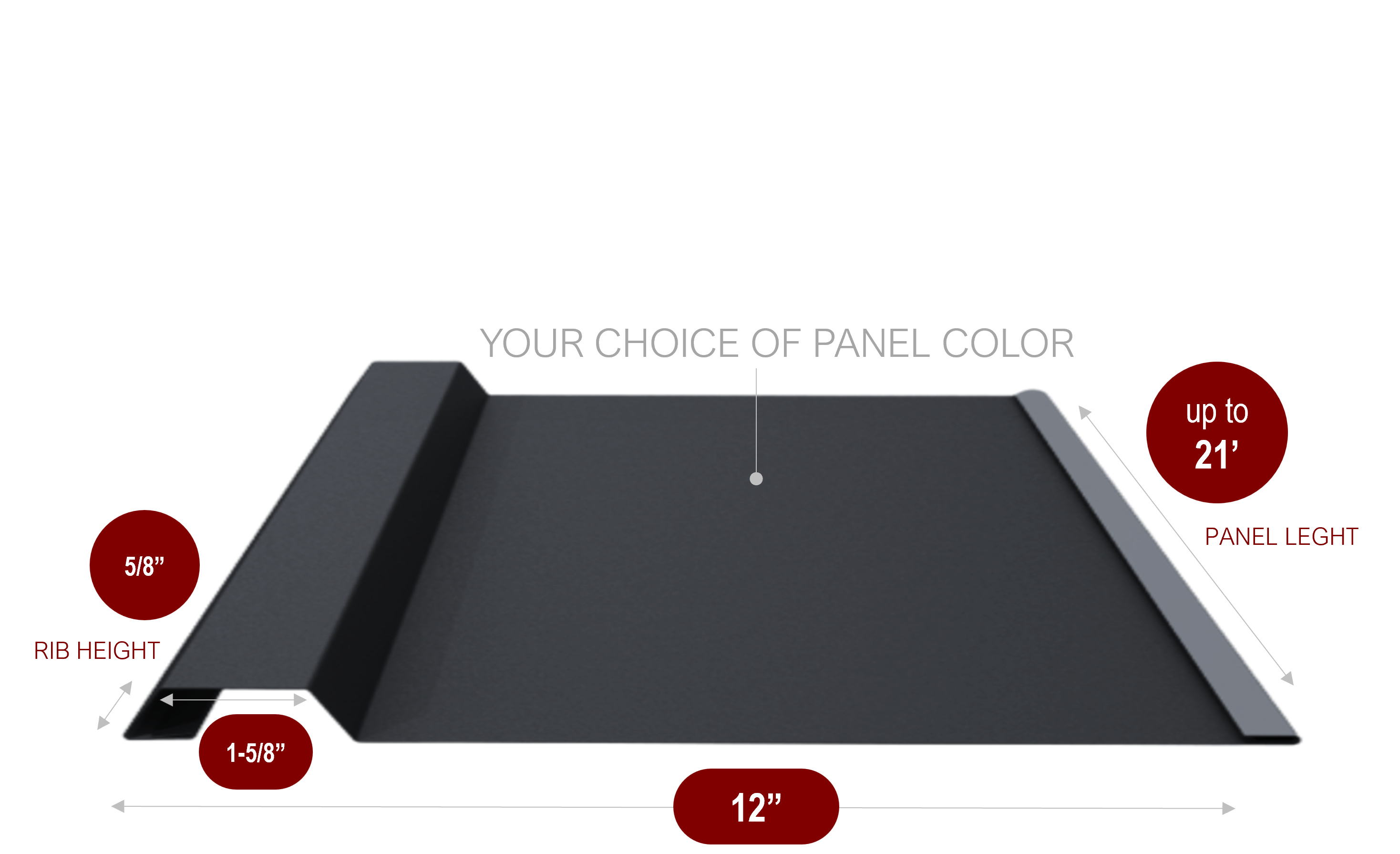

Dimensions & Profile
Standard Color Chart
WOODEN SPOT W77
KNOTTY PINE W69
CONCRETE X23
ACASIA WOOD W23
SLATE GRAY L2880
POLAR WHITE H2070
LIGHT STONE E7090
HAWAIIAN BLUE B2090
DARK BRONZE K2360
FERN GREEN D2970
CHARCOAL GRAY L2870
PREWEATHERED GALVALUME L2890
GALVALUME STEEL A755
MATTE BLACK B2370
DARK BLUE D2060
COLONIAL RED R2060
When installing One Rib panels, it is critical to ensure there is room for vertical expansion. Be sure not to over-tighten the fasteners. The panels should be semi-loose to allow them to "float". Fasteners should be placed in the center of the astening slot of the nailing flange. To properly tighten the fasteners a 1/32" gap should be left between the fastener and the panel.
When starting the job, the first step would be to prep the wall. To properly install the panels, you will need to have a solid substrate to attach them to. Installing with a solid substrate is key to keeping the panels from oil canning.
We would recommend at least a 1/2" plywood for your substrate. After you install the substrate, you should also cover the wall with house wrap to help protect it from water damage. Once these steps are complete you are ready to begin installing the trims for your siding.
