This popular type of standing seam metal roofing has a one or 1.5″ inch panel seam. It’s perfect for very low sloped commercial or residential roofs.
This popular type of standing seam metal roofing has a one or 1.5″ inch panel seam. It’s perfect for very low sloped commercial or residential roofs.
is a double-lock architectural 1.5” standing seam roofing panel that utilizes the proven seaming process of mechanical locking in conjunction with the floating action of a concealed clip assembly. This design allows for expansion & contraction caused by natural elements, providing a virtually leak-proof roof with exceptional wind uplift ratings.

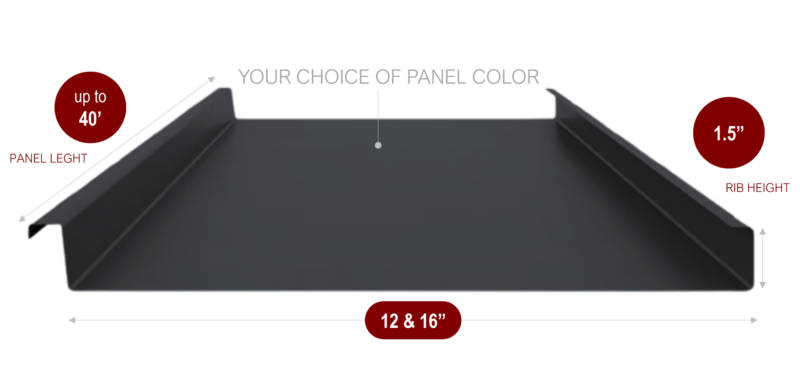

Dimensions & Profile
is a double-lock architectural standing seam system that provides a classical look that is
supportive of more rigorous wind-load designs required for many architectural projects. The concealed fasteners and
articulating two-piece floating clip system assist in minimizing the appearance of oil canning.
Mechanically Seamed panels must be installed in a sequential pattern. Application of a Mechanically Seamed approved
underlayment prior to panel installation is recommended when installed over a solid substrate.
• Install in accordance with industry-recognized sheet metal practices.
• Cut, form, and fasten using conventional hand or power tools.
• For best results cutting tool edges should be kept sharp, clean, properly dressed, and closely aligned.
• Fabrication and erection can be accomplished with strippable plastic film in place. Film should be removed from areas
of concealed or joined pieces.
Standard Color Chart
WOODEN SPOT W77
KNOTTY PINE W69
CONCRETE X23
ACASIA WOOD W23
SLATE GRAY L2880
POLAR WHITE H2070
LIGHT STONE E7090
HAWAIIAN BLUE B2090
DARK BRONZE K2360
FERN GREEN D2970
CHARCOAL GRAY L2870
PREWEATHERED GALVALUME L2890
GALVALUME STEEL A755
MATTE BLACK B2370
DARK BLUE D2060
COLONIAL RED R2060
