Board Plank Panel

The Board Plank Panel is an excellent option to add a complimentary material to any type of exterior building and is highly sought after in commercial applications such as offices, retail fronts, restaurants, bars, and new office buildings.

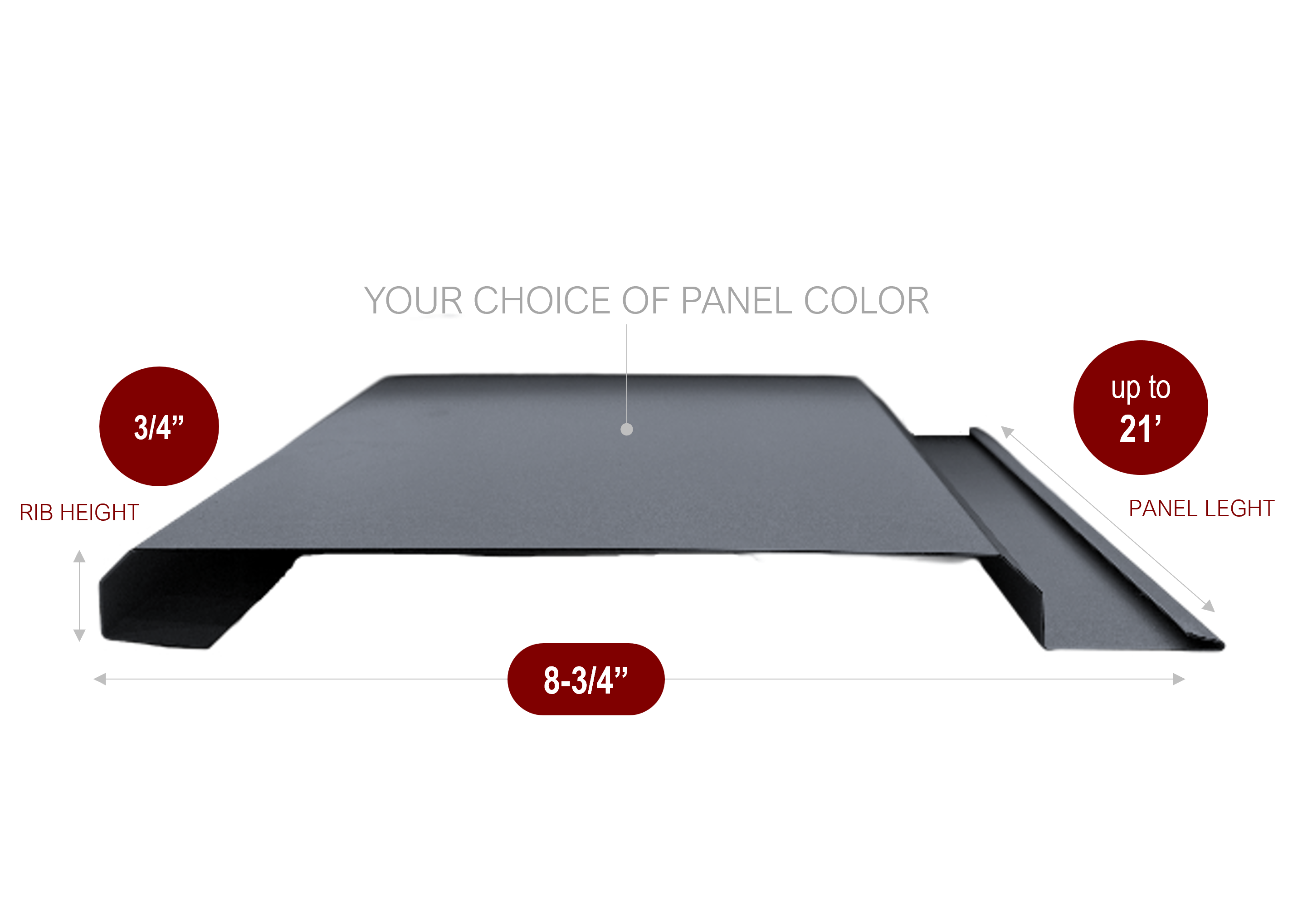

Dimensions & Profile

Product Data

  • Rib Height: 3/4″

  • Available Gauges: 24, 26

  • Fasteners: Concealed
  • Panel Length: 1′ to 21′

  • Coverage: 8-3/4"

  • Coating: Kynar 500® (PVDF)

Standard Color Chart

WOODEN SPOT W77

KNOTTY PINE W69

CONCRETE X23

ACASIA WOOD W23

SLATE GRAY L2880

POLAR WHITE H2070

LIGHT STONE E7090

HAWAIIAN BLUE B2090

DARK BRONZE K2360

FERN GREEN D2970

CHARCOAL GRAY L2870

PREWEATHERED GALVALUME L2890

GALVALUME STEEL A755

MATTE BLACK B2370

DARK BLUE  D2060

COLONIAL RED R2060
